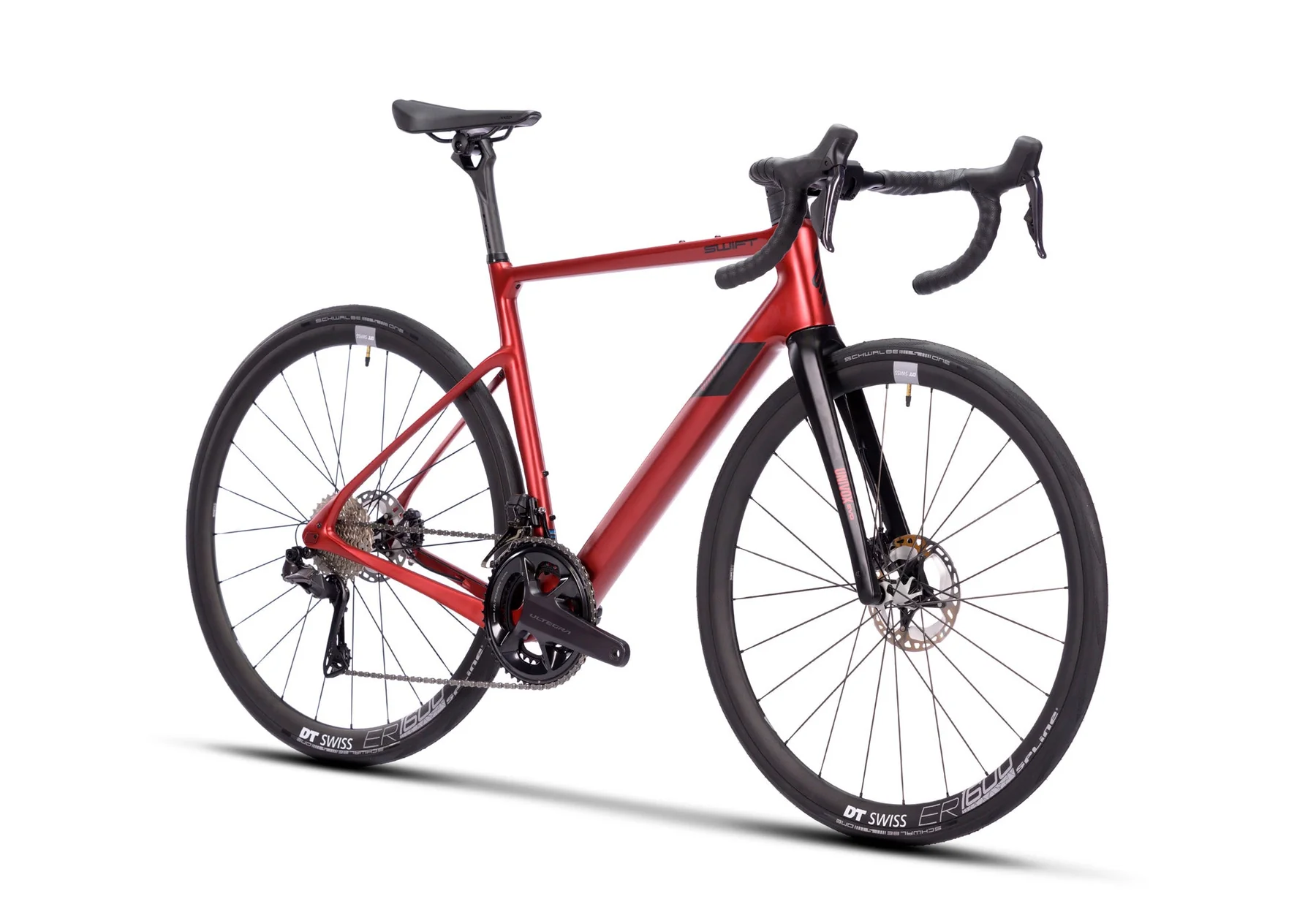

Swift Univox Evo carbon bike

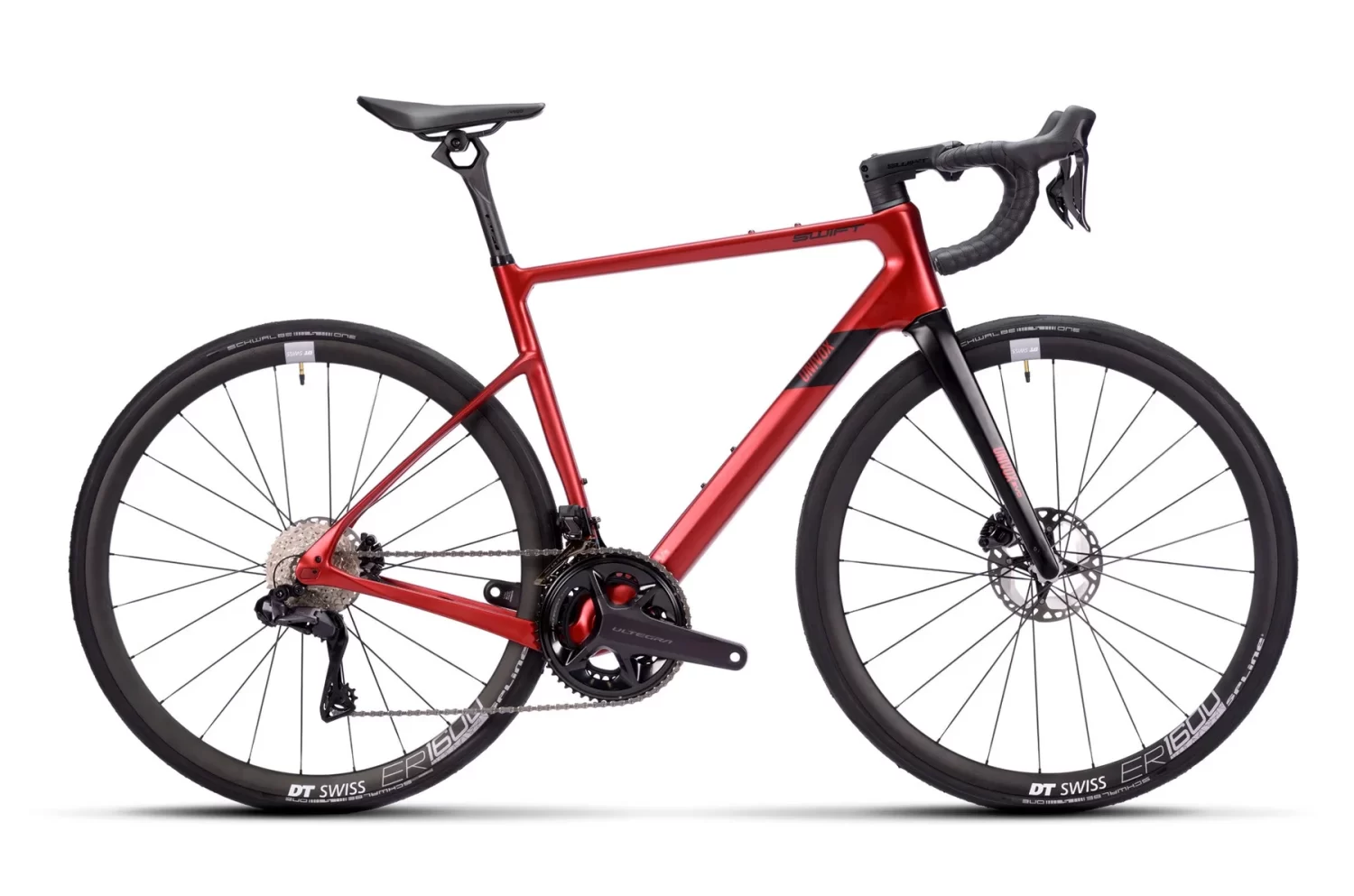

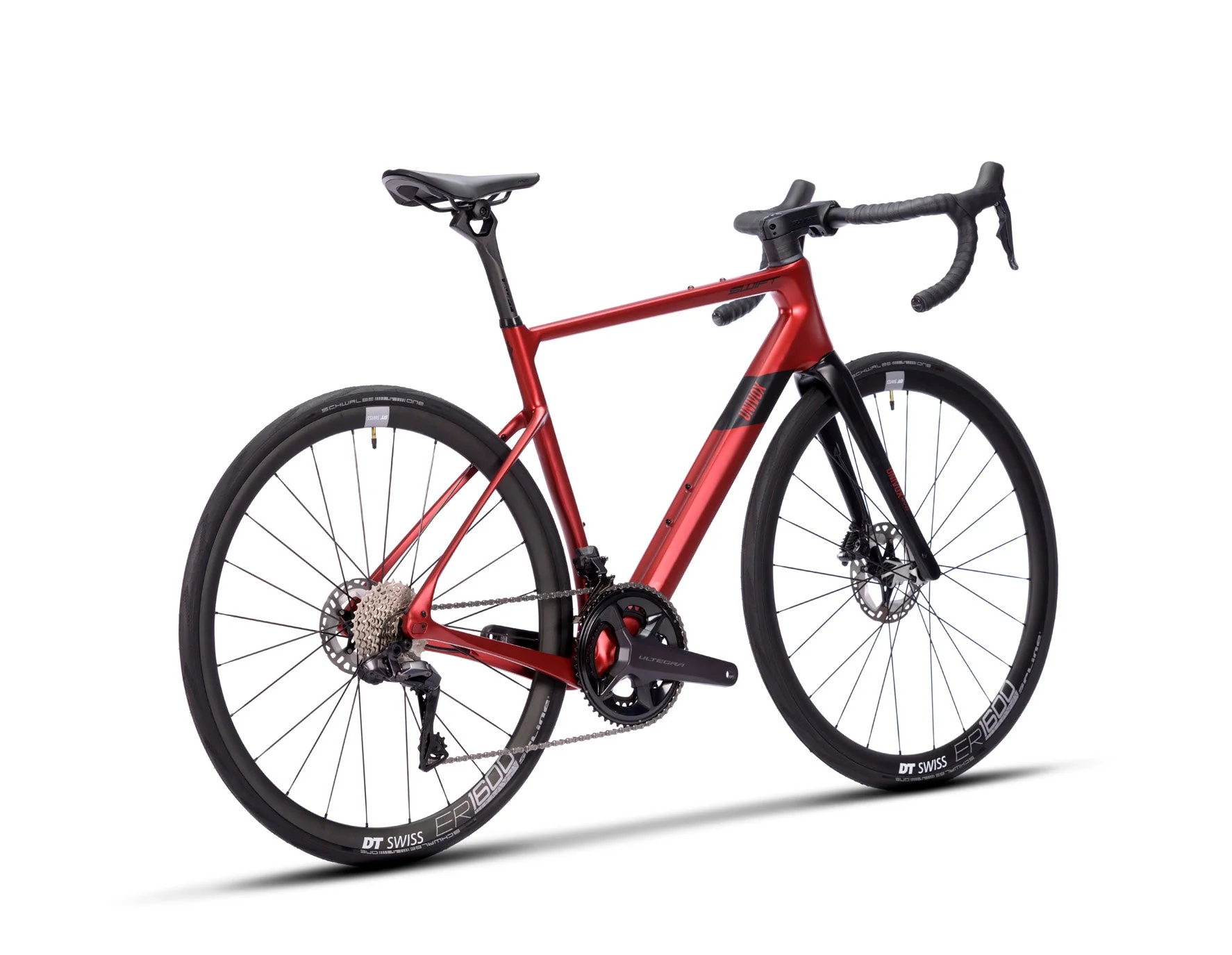

Swift Univox Evo Bike
Swift Univox Evo

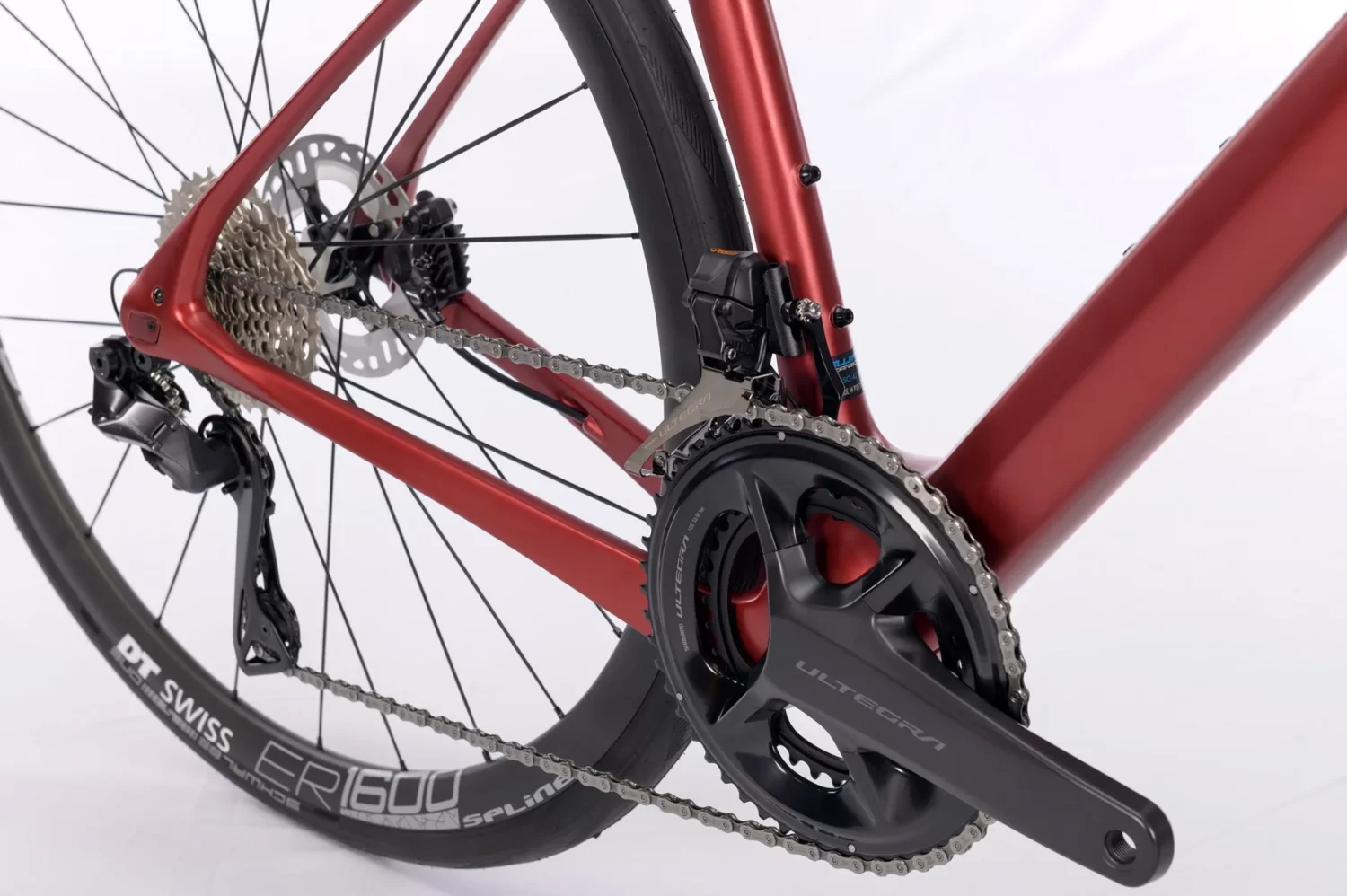

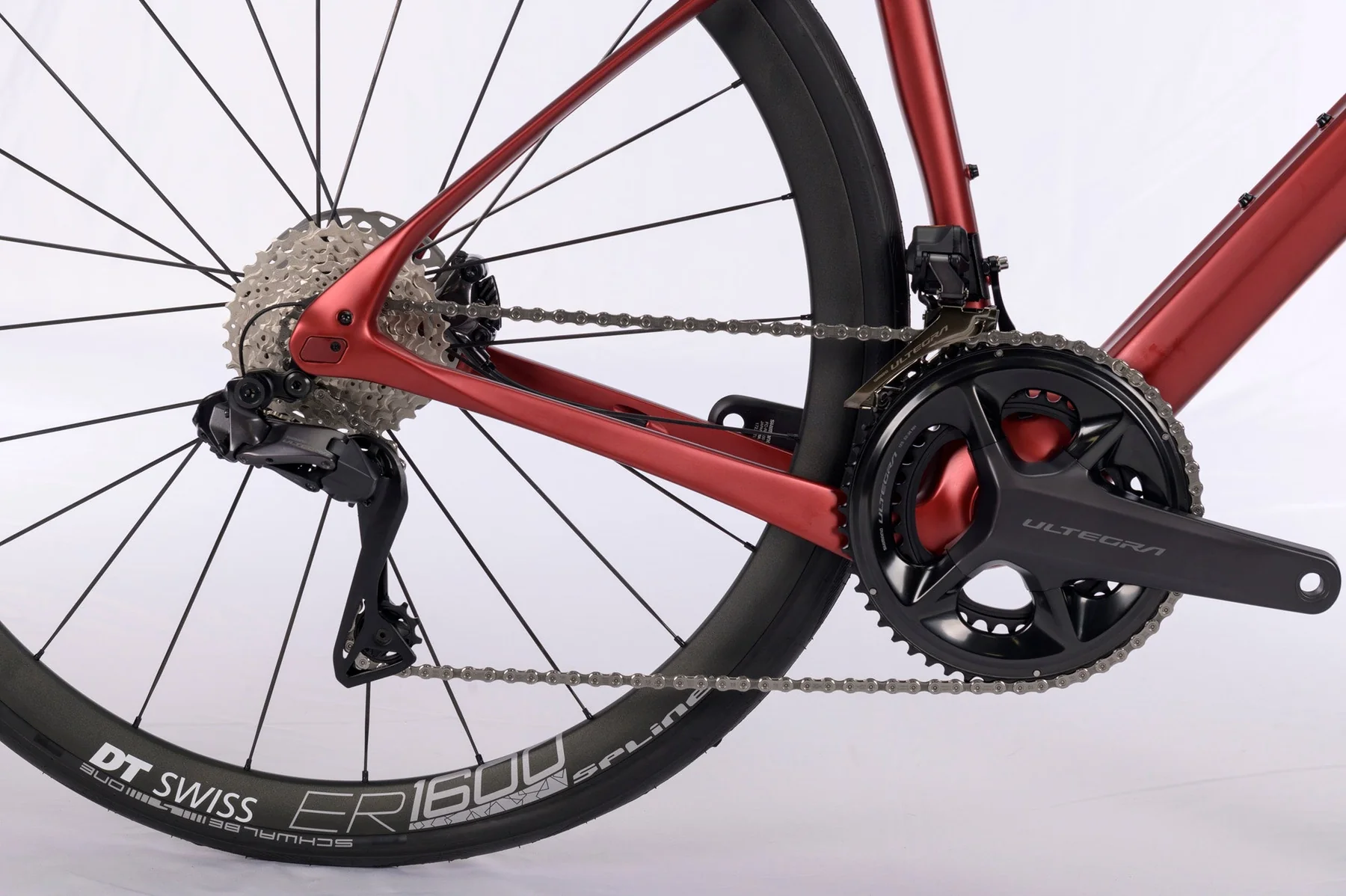

Swift Univox Evo drivetrain
Swift Univox Evo front wheel

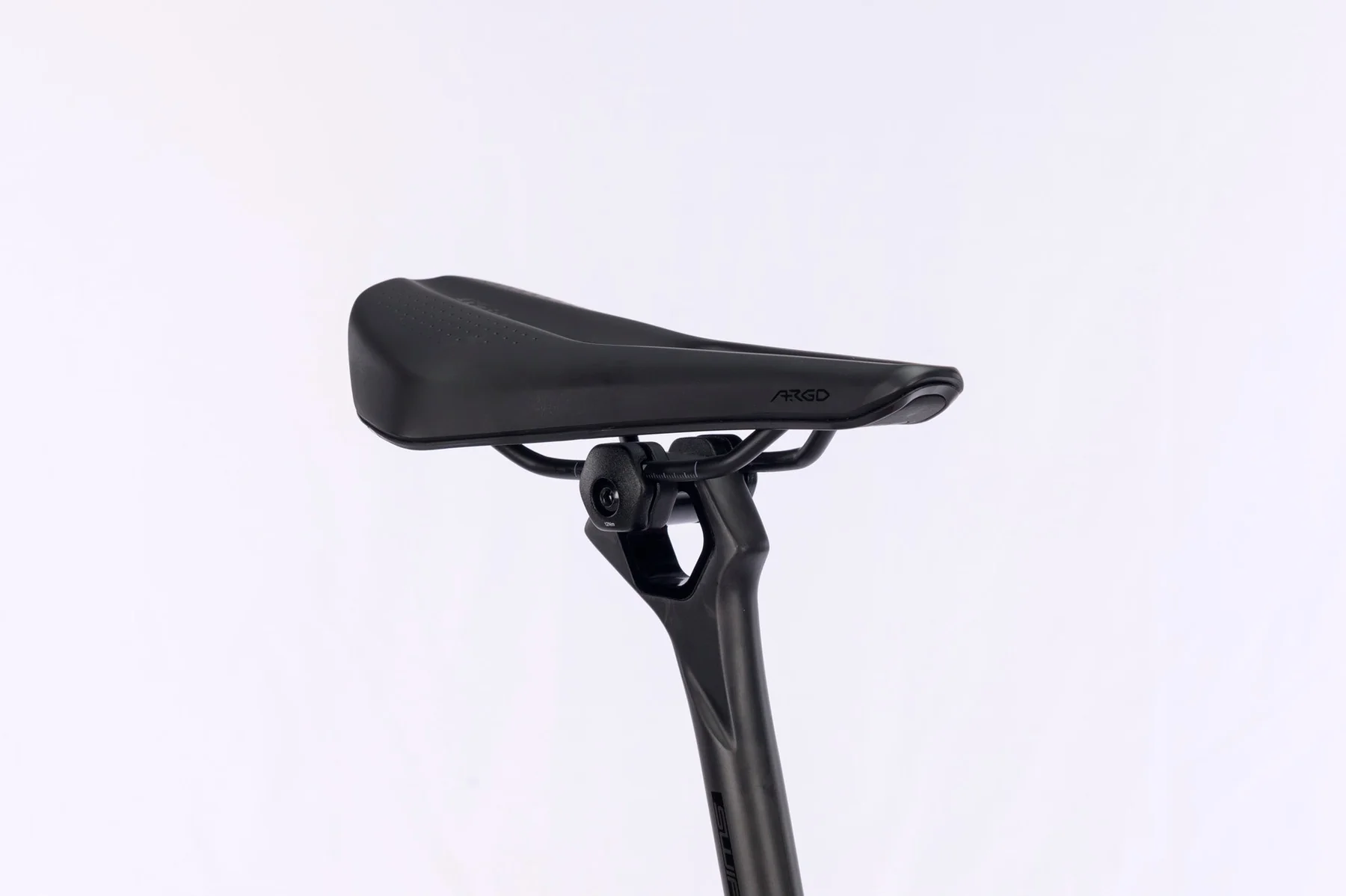

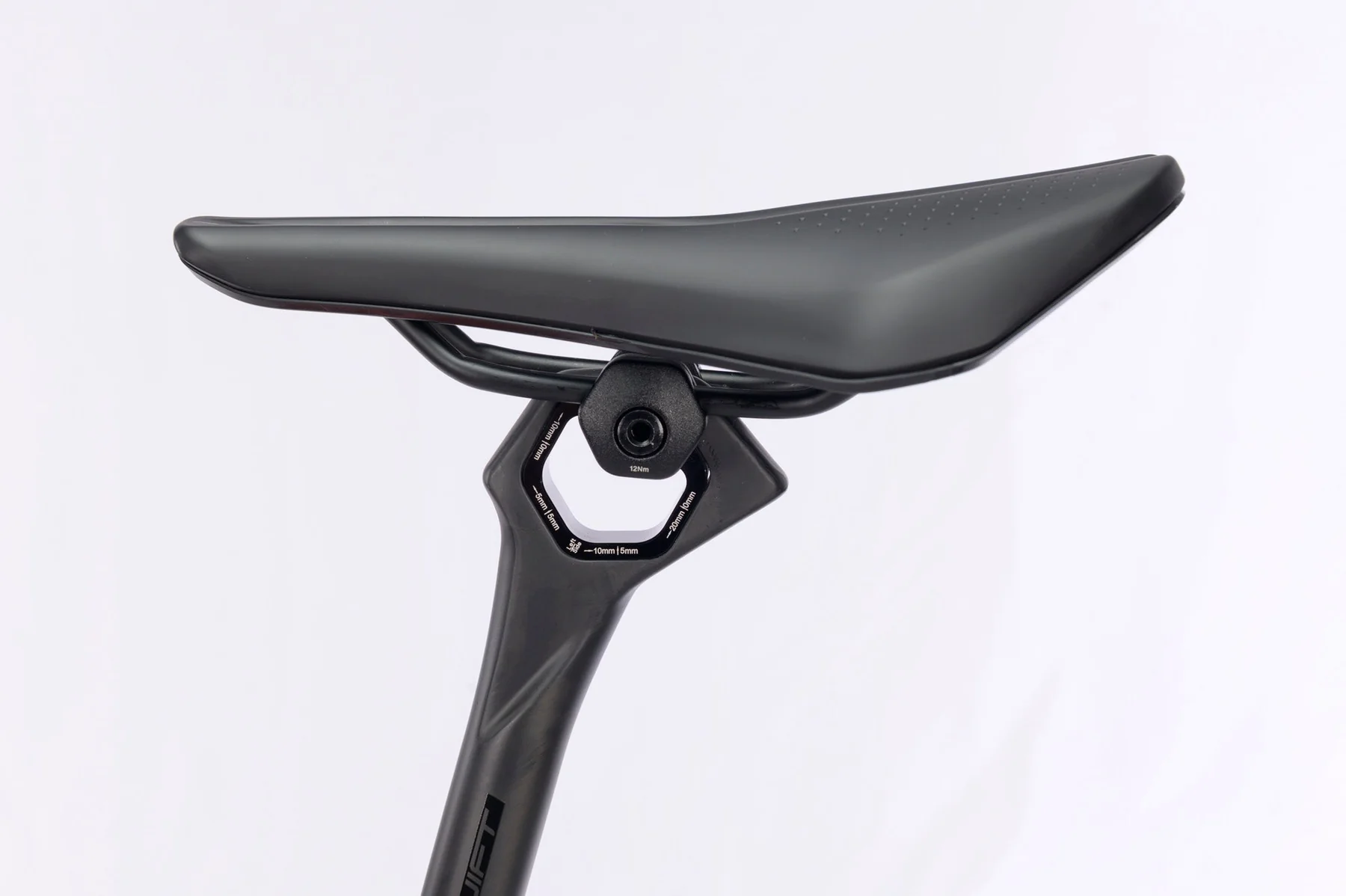

Swift Univox Evo saddle
Swift Univox Evo chainset
Swift Univox Evo

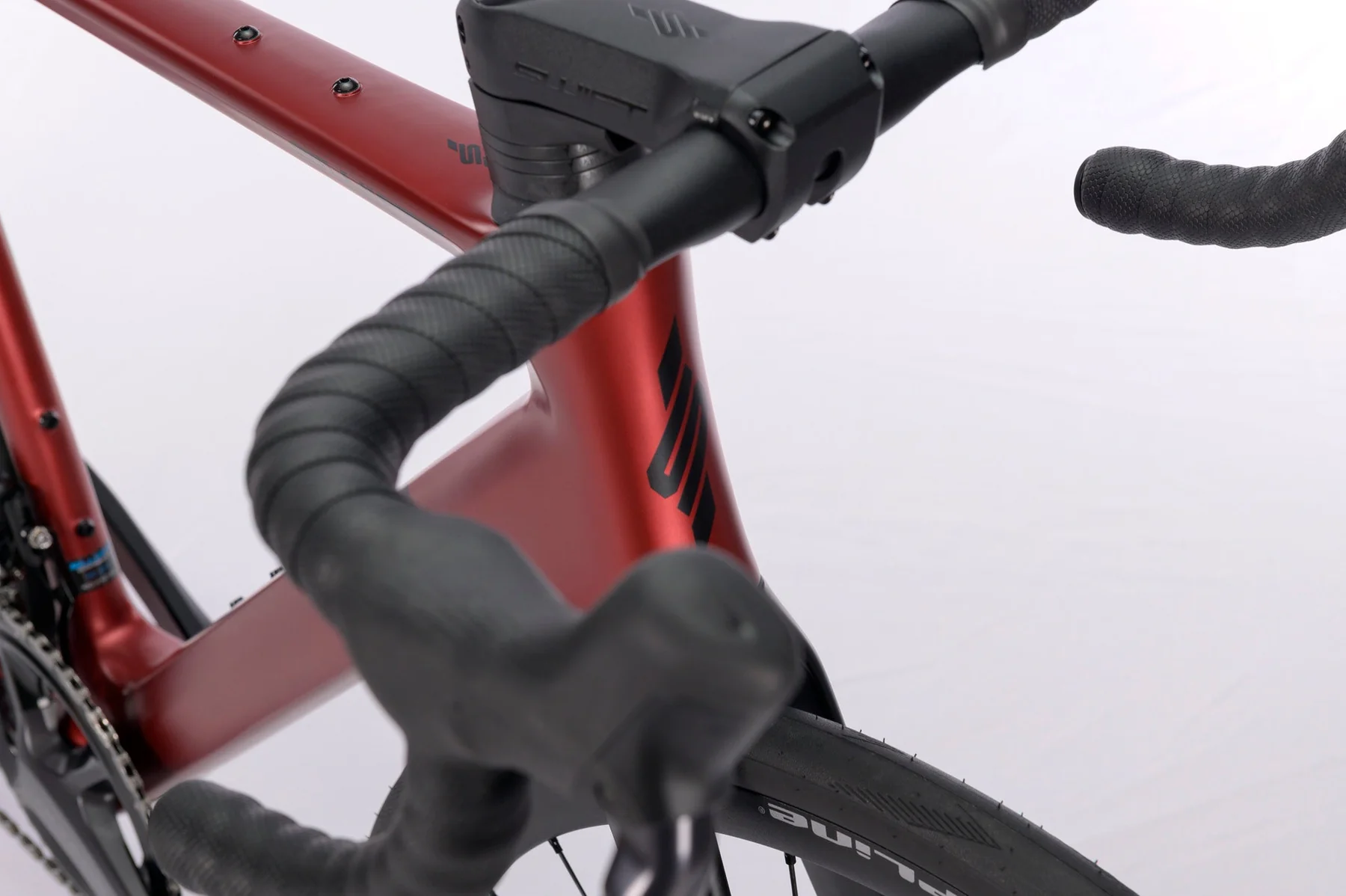

Swift Univox Evo handlebars

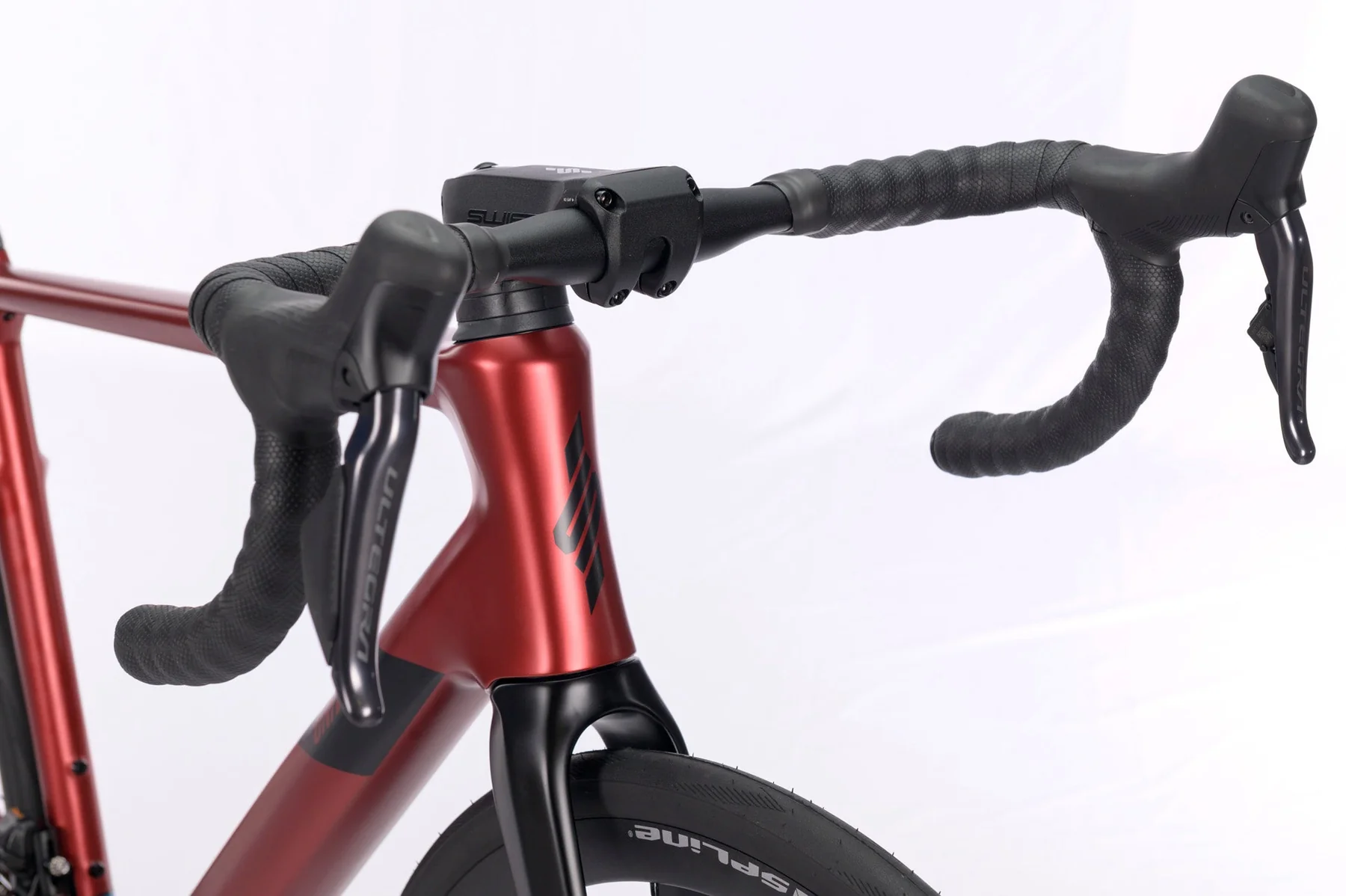

Swift Univox Evo cockpit
Swift Univox Evo disc brakes

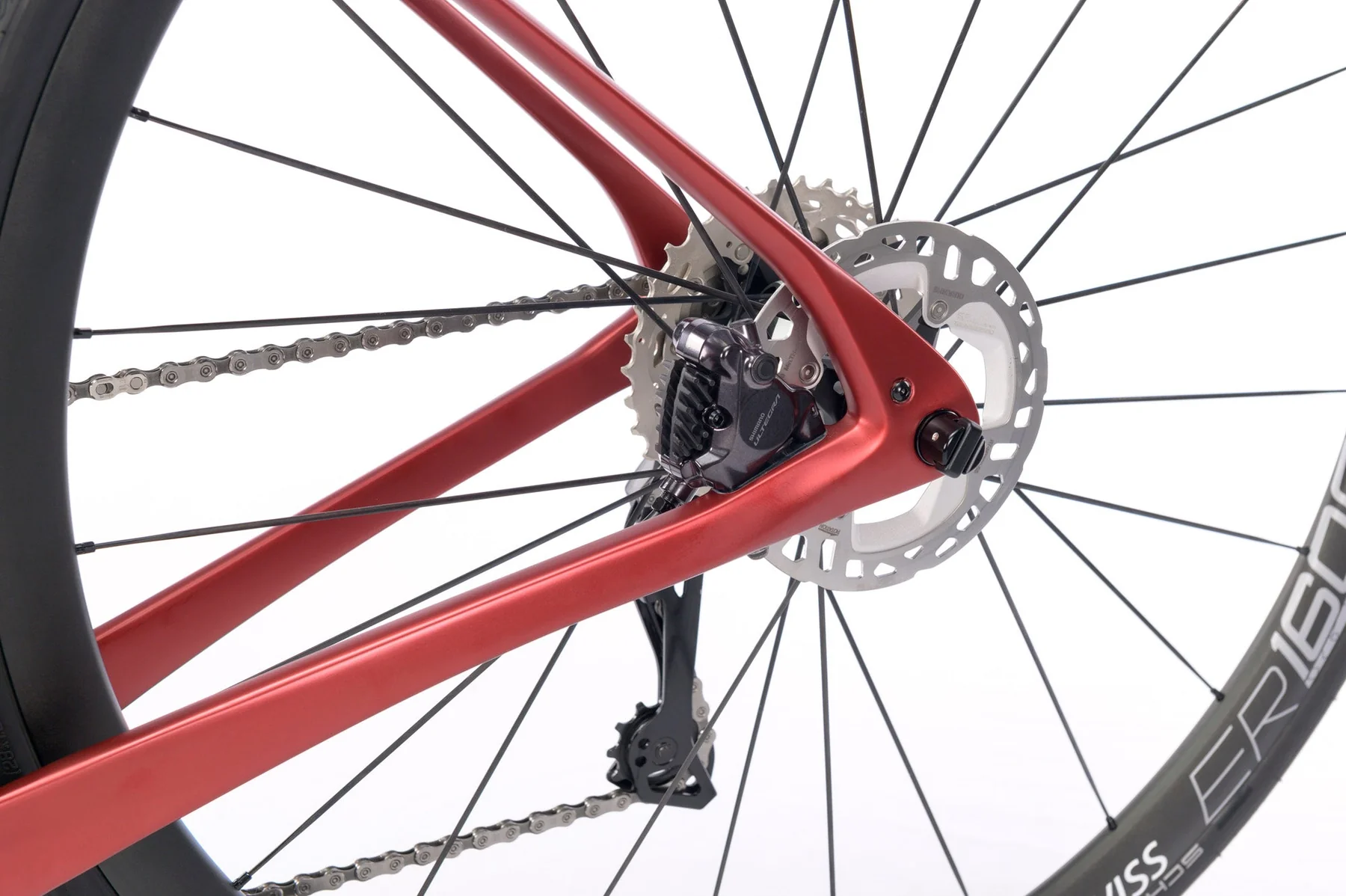

Swift Univox Evo rear brakes
Swift Univox Evo seat post

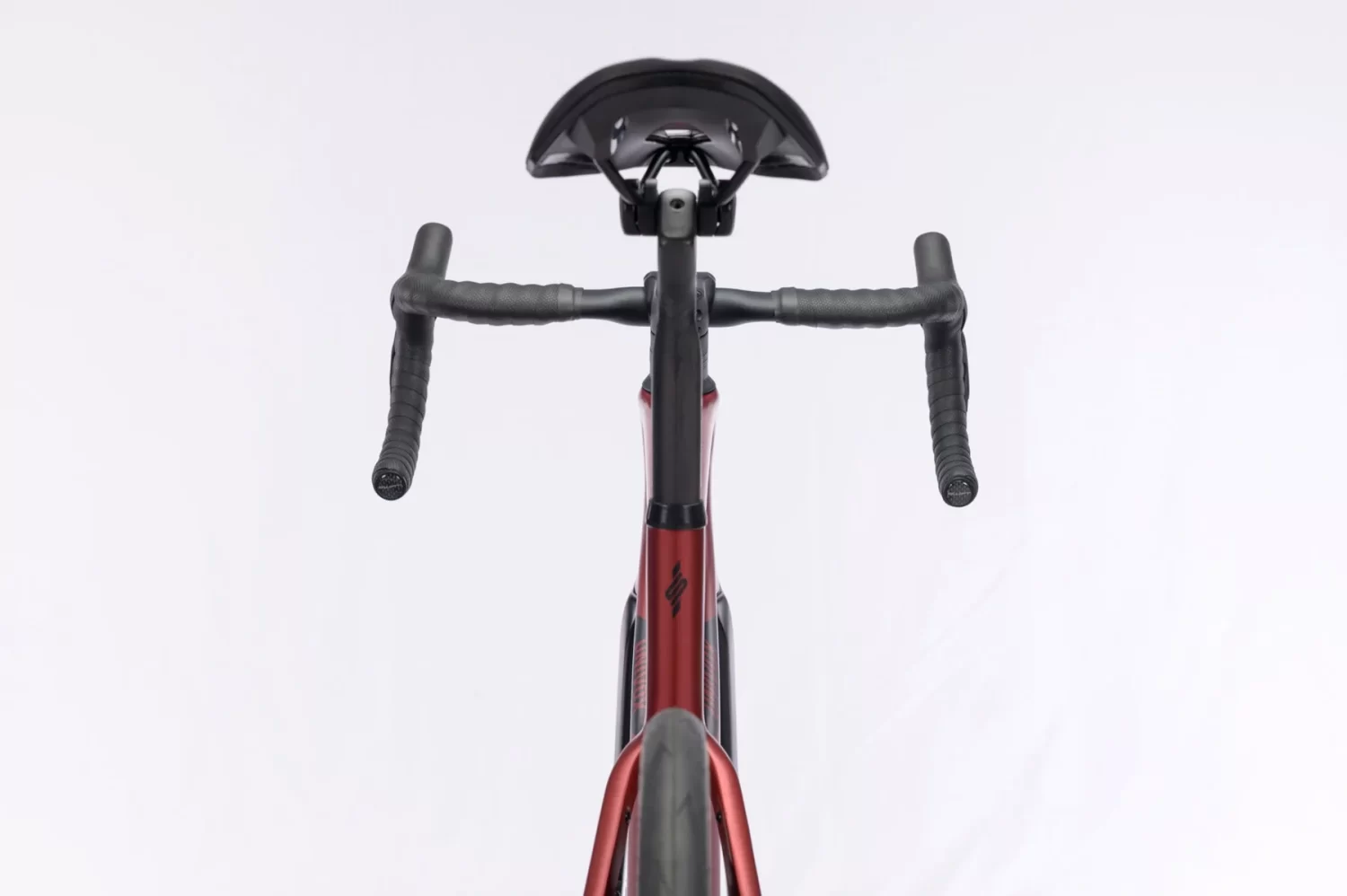

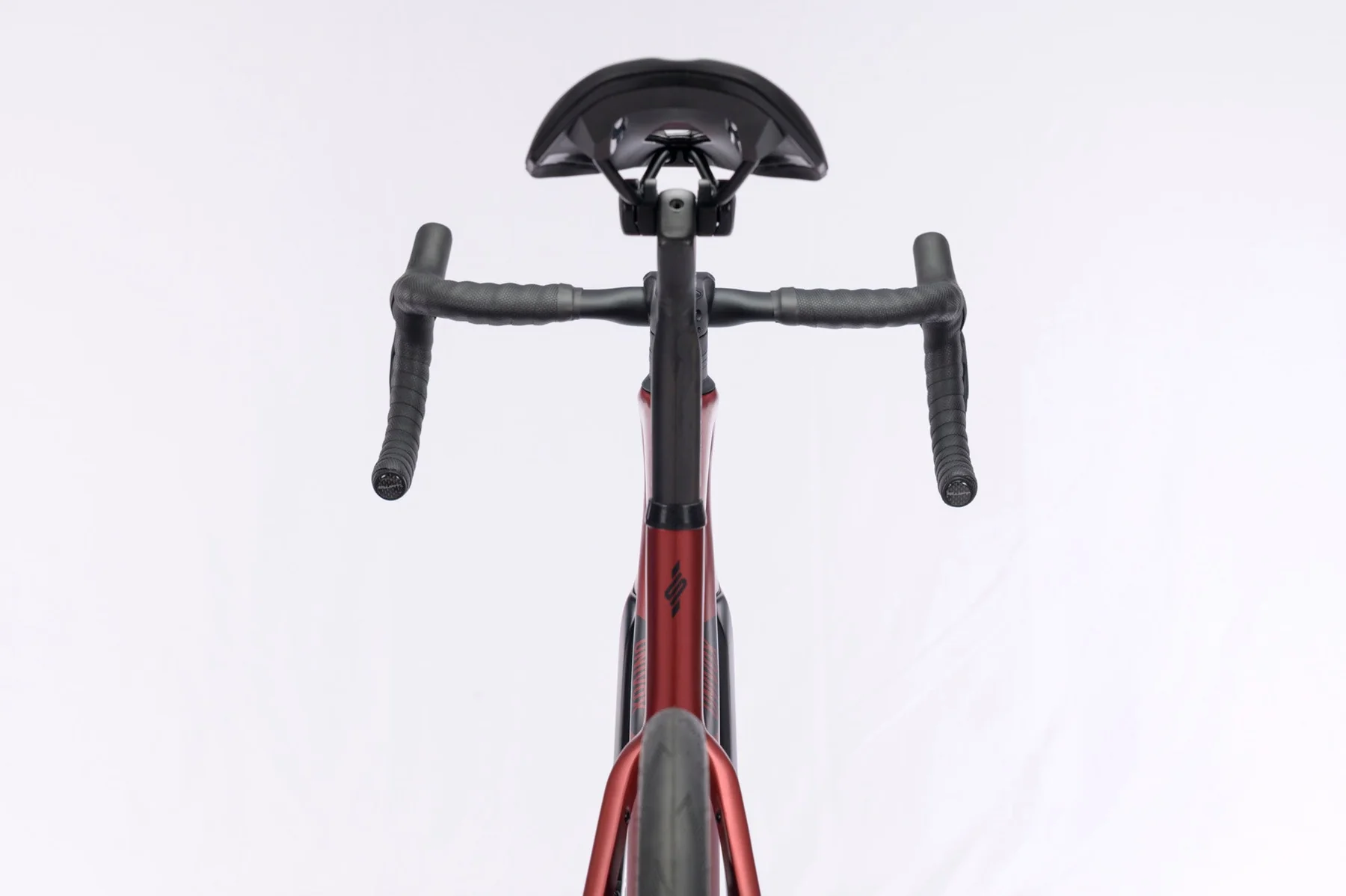

Swift Univox Evo rear view
Swift Univox Evo stem

The Swift UniVox Evo redefines what’s possible in an endurance road bike, delivering the ultimate combination of long-distance comfort and uncompromising performance. Designed for cyclists who demand versatility across varied terrain, the UniVox Evo merges ergonomic efficiency with cutting-edge racing technology, making it ideal for everything from epic gran fondos to all-day explorations on unpredictable roads.

At its heart lies a refined Endurance geometry, placing riders in a powerful yet comfortable position for sustained speed over hours in the saddle. Whether you’re pushing through a timed challenge or soaking up the scenery on remote countryside loops, the Swift UniVox Evo ensures comfort never comes at the expense of speed.

This Evo edition takes the platform to new heights, now featuring the precision of the Shimano Ultegra Di2 12-speed electronic groupset, matched with lightweight, durable DT Swiss Endurance ER 1600 wheels. Every component has been carefully chosen to enhance the ride: agile, responsive, and smooth, no matter the gradient or surface.

Swift UniVox High-Performance Carbon Frame

Crafted from premium TAIRYFIL TC36S carbon fiber, the UniVox Evo frame delivers an exceptional balance of minimal weight and maximum strength. The innovative design includes the Blind Dropout feature—an elegant solution that conceals thru-axle threads for a cleaner, more aerodynamic look. An integrated seat clamp adds to the sleek aesthetic, while functional elements like Flex seatstays actively absorb road buzz and micro-impacts for a noticeably smoother ride.

Despite its comfort-first geometry, the Swift UniVox Evo doesn’t sacrifice handling. With room for up to 40c tires and a lower center of gravity engineered into the chainstay design, the bike offers both nimble agility and rock-solid stability—perfect for those who like to push hard on technical descents or mixed-surface adventures.

Optimised for the Long Haul

The frame includes a total internal cable routing system and a PF30 BB86 EVO bottom bracket, contributing to both frame stiffness and low overall weight. The rear 12x142mm E-Thru axle further enhances power transfer and bike rigidity. For riders who go beyond the ordinary, the UniVox Evo also includes integrated mounting points for mudguards, saddle bags, and even a top tube bag, ensuring you’re ready for endurance rides and light touring setups alike.

UniVox Evo -Key Specifications at a Glance:

  • TAIRYFIL TC36S carbon construction: ultralight and resilient
  • Semi-integrated, full carbon fork for enhanced vibration dampening
  • Internal cabling cockpit with lightweight aluminum bars
  • Blind Dropout design for a streamlined appearance
  • BB30 PF86 EVO bottom bracket and tapered headset for improved stiffness
  • Shimano Ultegra Di2 12-speed drivetrain: crisp, electronic shifting precision
  • DT Swiss Endurance ER 1600 wheels for smooth rolling efficiency
  • 40c tire clearance for added grip and versatility
  • UCI-approved frame and fork – race-ready performance

With the Swift UniVox Evo, you don’t have to choose between endurance and speed—you get both. This is the all-day performance road bike designed for cyclists who want to ride further, faster, and in total control.

Swift Univox Evo cockpit

FRAMESET

FRAME
Univox frame, Full Tairyfil TC36S Carbon Fiber, Full Internal Cable Routing System, PF30, Disc Brake, E-Thru 12x142mm

FORK
Univox fork, Full Tairyfil TC36S Carbon Fiber,
Disc Brake, Tapered, 12x100mm

WHEELSET

FRONT WHEEL
DT Swiss ER 1600 SPLINE, 622 x 20mm width, depth 32mm,
Disc Center Lock, E-Thru 12/100mm

REAR WHEEL
DT Swiss ER 1600 SPLINE, 622 x 20mm width, depth 32mm,
Disc Center Lock, E-Thru 12/142mm

TIRES
Schwalbe One Performance, 700x30c, RaceGuard, MicroSkin

TUBES
Michelin Aircomp Ultralight 622×18/25c, Presta 52mm

RIM TAPE
DT Swiss Rim Tape

COMPONENTS

HANDLEBAR
Swift Alloy Ergo 6061, diameter 31.6mm, flare 4°, drop 125mm, bar reach 78mm,
width 420mm for size 49-51 and 440mm for size 54-56

SADDLE
Fizik Argo Tempo R5, 150mm, Black

SEATPOST
Swift Full Carbon, diameter 27.2mm, length 350mm, Multi-adjustable

HANDLEBAR TAPE
Swift Bar Tape, Black

STEM
Swift Alloy, length 90mm for size 49,
100mm for size 51-54, 110mm for size 56

HEADSET
Token HS-958, Compressor C286G (1-1/8”) for Carbon Fork

SEAT CLAMP
Swift, Integrated

GROUPSET

BRAKES
Shimano Ultegra ST-R8170 /  BR-R8170, Hydraulic Disc Brake

BRAKE ROTOR
Shimano RT-MT800, front 160mm & rear 140mm

SHIFTERS
Shimano Ultegra ST-8170, Left / Right

REAR DERAILLEUR
Shimano Ultegra Di2 RD-R8150, 12 Speed

FRONT DERAILLEUR
Shimano Ultegra Di2 FD-R8150, 12 Speed

CRANKSET
Shimano Ultegra FC-R8100, 52-36t, 12 Speed,
Crank length: 170mm for size 49, 172.5mm for size 51-56, 175mm for size 59

BOTTOM BRACKET
FSA BB386 PF30, 46x30mm, EVO 24 Reducer

CASSETTE
Shimano Ultegra CS-R8100, 12 Speed, 11-30t

CHAIN
Shimano Ultegra CN-M8100, 112 links for HG 12 Speed

BATTERY
Shimano BT-DN300

BATTERY CHARGER
Shimano Charging Cable, EW-EC300, 1700mm

ELECTRIC WIRES
Shimano EW-SD300

Swift Univox Evo Geometry
